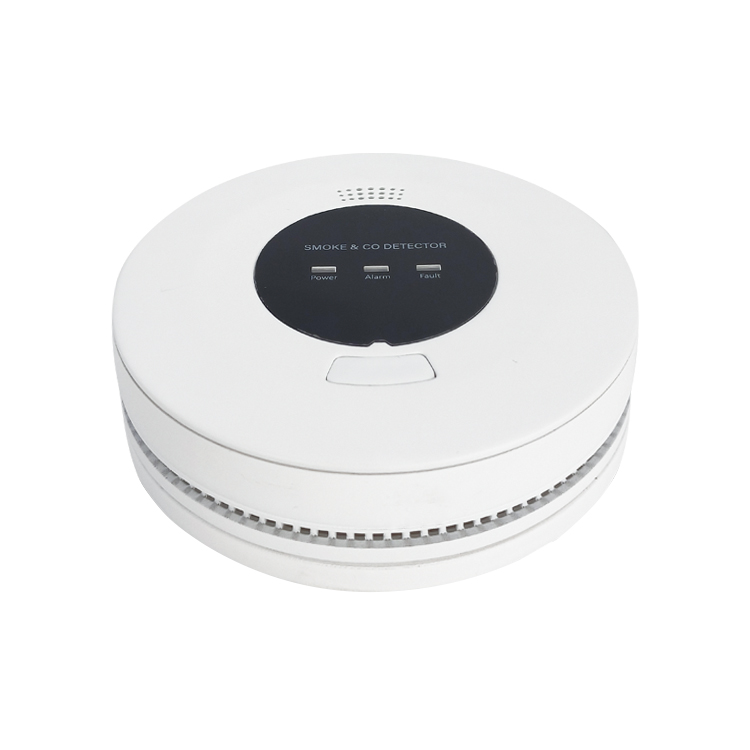

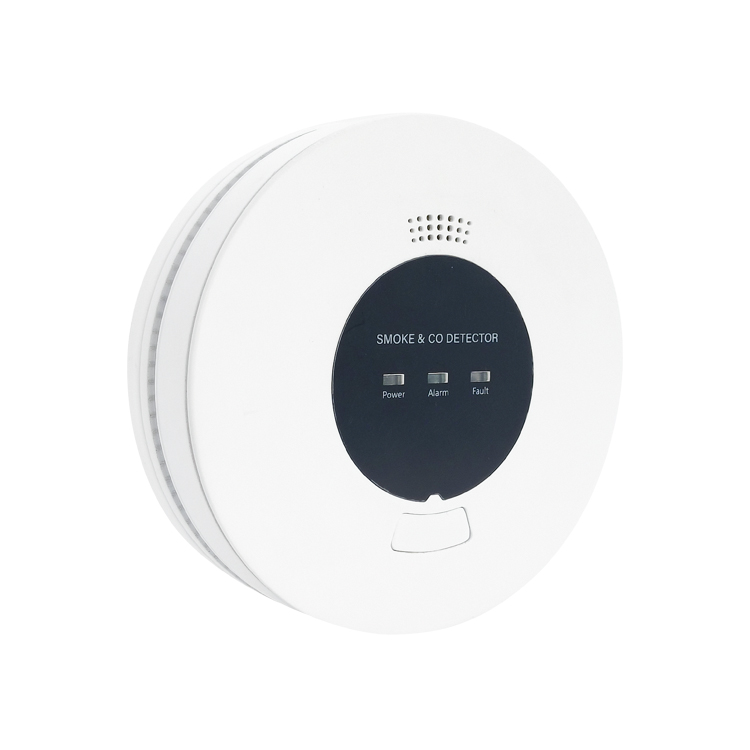

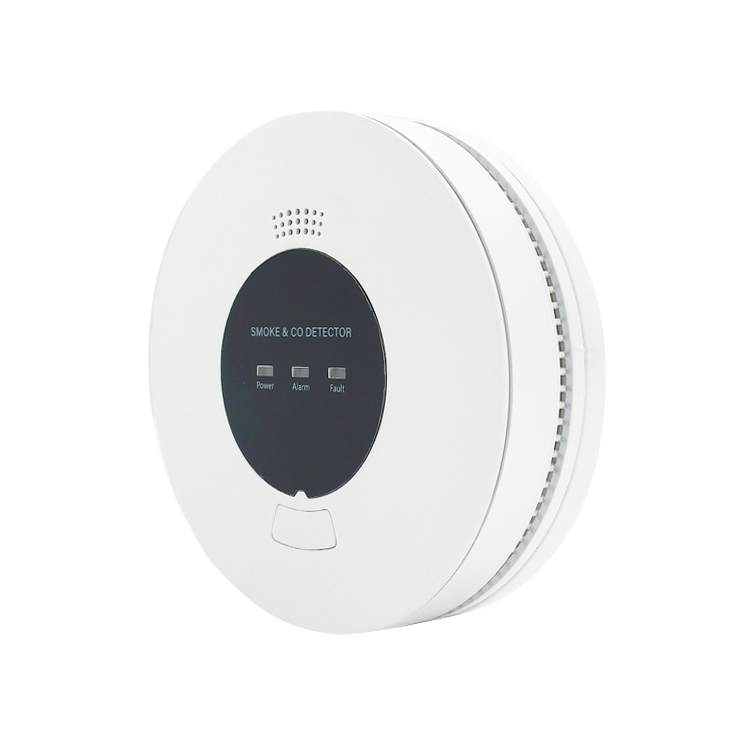

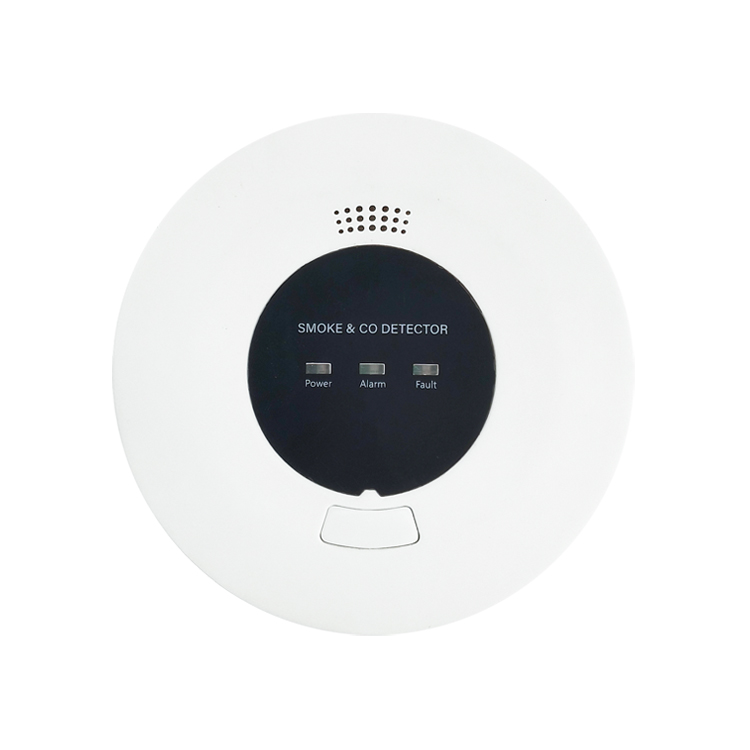

Smoke & CO Detector

【 Product Parameter】

•   Operating voltage :                Voltage DC3V Battery & AC110-220V                                                               •   Standby current :                                                            ≤ 15uA

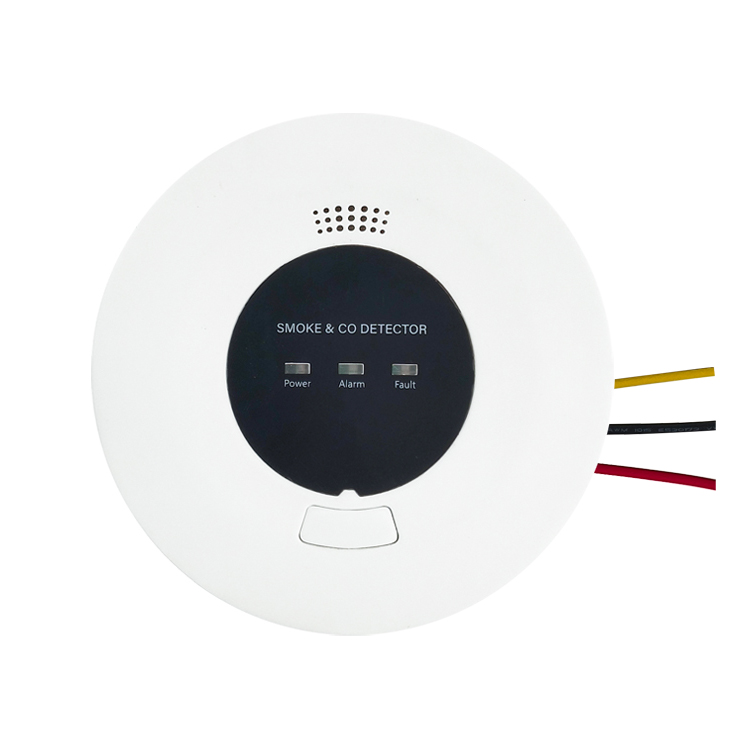

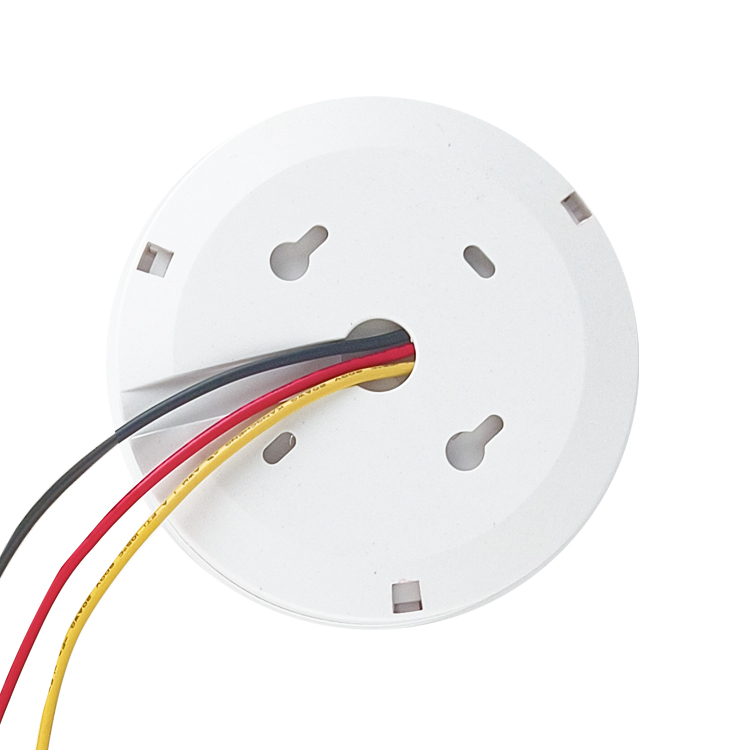

                                                                      +Interconnection(optional)

•   Sensitivity :                                                               0.08~0.16 dB/m                                                               •   Alarm current :                                                               ≤ 45mA

•   Alarm sound pressure :                                                 ≥ 85dB@3m                                                                •   Indicator LED of alarm :                                        red LED flash

•    Battery life:                                                                           10 years                                                           •   Material :                                                                                ABS

•   Certificate :                                                         EN14604 ,EN50291                                                               •   Operation temperature ：                                        -10℃~50℃

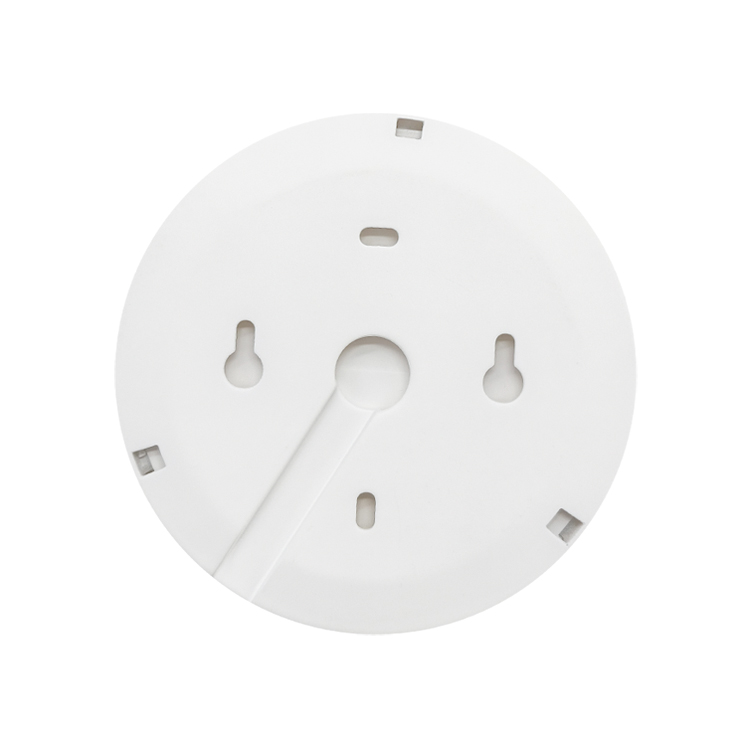

•   Installation method :                                                   Ceiling mount                                                                •   Operation humidity ：                    ≤ 95%RH(no condensation)

•    Dimension ：                                                                  Ø108 * H36.5mm

【 Product Introduction 】

This product named Photoelectric smoke and CO combination detector (hereinafter called detector) detects the smoke by a couple of infrared diodes and offers CO detection. The principle of detecting smoke is granule in the smoke can reflect infrared light. Infrared diodes are placed in the special chamber. The chamber can shield external light, but don’t affect the smoke into it. While have no smoke, the diode can receive very weak infrared light. When the smoke entering the detector, the diode can receive strong infrared light.

The product is Carbon Monoxide detector with high stability. (hereinafter called detector), It is used for detecting the Carbon Monoxide. Advanced electrochemical sensor is adopted. The detector adopts MCU processing, working stable, long life, easy for installation and high reliability. It is available for the safety of residential area, villas, hotels, markets, boarding house, etc. in where there maybe CO.

Connected case: When an alarm occurs in one product, other connected products will also issue an alarm at the same time.
